Features

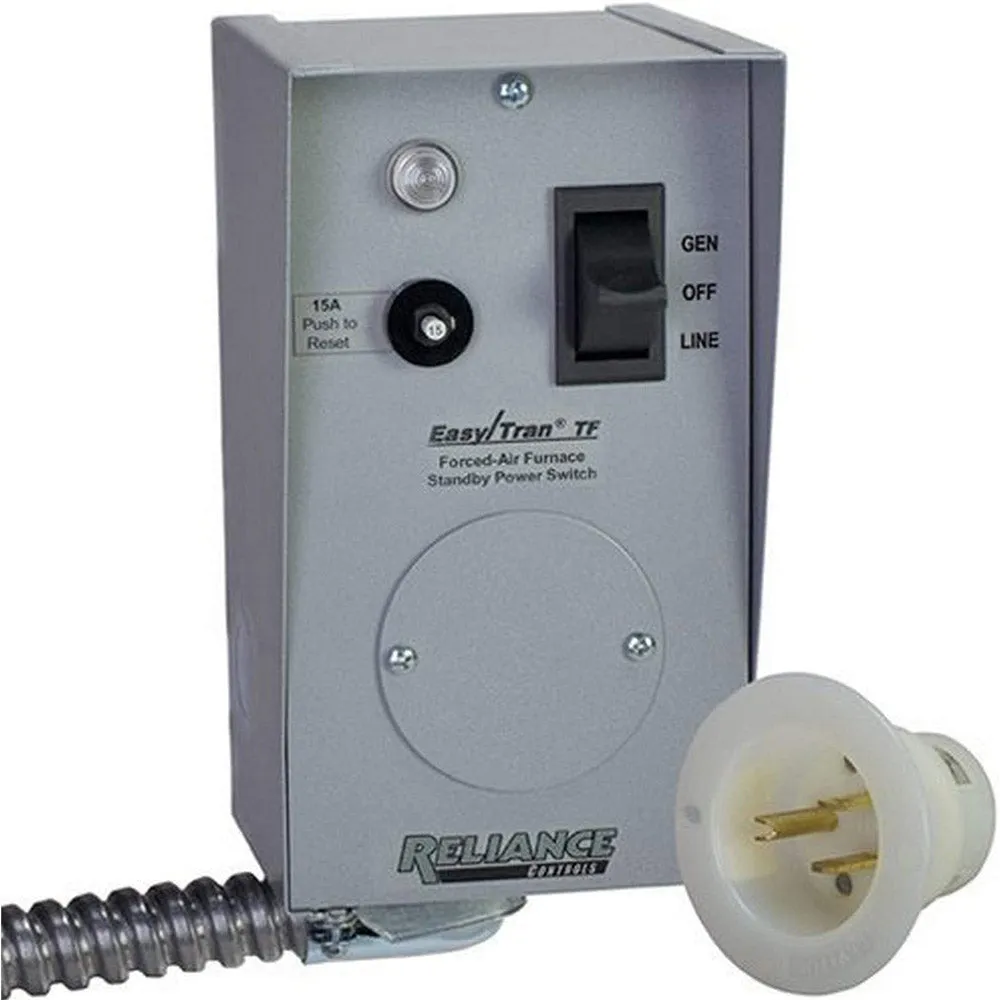

- The Easy/Tran TF transfer switch is designed for the control of a single circuit, such as a forced-air furnace, in the event of a power failure.
- The attached 18" flexible aluminum conduit is pre-wired and allows the TF to be easily connected at the circuit breaker panel or the furnace or at any point in between.
- Power can be supplied from a portable generator, inverter, RV generator, fuel cell or any standby source capable of producing sufficient current to operate the desired load.
- Uses standard grounded extension cord.
What's in The Box
- Easy/Tran Transfer Switch - TF201W
- Owner's Manual
Warranty
- 30-Day Satisfaction Guaranteed
Specifications
| SKU | TF201W |
| Brand | Reliance |
| Model Description | Easy/Tran |
| Max. generator running watts | 2500 |
| Phase | Single |
| Max. single-pole circuits | 1 |
| Max. double-pole circuits | 0 |
| Max. combined load at 125 vac | 20 |
| 20 Amp single pole circuit breakers | 1 |
| Power inlet, NEMA | 5-20 |
| Reccommended cord size [gauge] | 12 |
| Conduit size [inches] | 1/2 |
| Wattmeters | No |
| Cabinet type, NEMA | Indoor |
| Weight | 5 lbs |
